Introduction
Here you will see some of our steel coil leveling equipment, integrating scissor and drop-type stackers. This metal cut to length production line features hydraulic adjustment and the finished steel plates have uniform width and flatness, therefore, the final products made of steel plates have a better appearance and quality.

Product testing is performed including thickness measurement, width measurement, coating weight measurement, surface inspection and flatness inspection in order to satisfy different requirements of our customers in various industries.

This cut to length line is divided into three series because of different steel strip thickness and strip width, including:

• Thin coil cut to length line
• Middle thick coil cut to length
• Thick coil cut to length line

Application
The metal coil decoiling, leveling and cut to length line is applied on cold-rolled steel, hot-rolled steel, carbon steel, stainless steel, galvanized steel, color steel plates and other metal materials.

Middle Thick Coil Cut-to-Length Line (1.0-12.7mm)x2000mm

Advantages and Characteristics

• High precision.
• Maximum line speed can reach 30m/min, 7-8pcs/min in average;
• Leveling precision: ±1mm/㎡;
• Sheet length precision: ±0.5mm/m;
• Sheet diagonal length precision: ±0.5mm/m;
• If the loaded steel coil is lightweight, the single mandrel (cantilever) uncoiler is typically adopted; When the coil is big and heavy, Coils differ in coil weight, when the max coil weight is small, asingle mandrel (cantilever) uncoiler is adopted; when max coil weight is large, a double-cone uncoiler is adopted for middle thick coil cut-to-length lines.
• To make flat steel sheets, the diameter of leveling rollers should be properly calibrated; our leveling roller diameter is decided through comprehensive experience and precise engineering calculation.
• The support rollers installed on the bracket can tighten up the leveling rollers to make sure no deformation of leveling rollers while leveling.

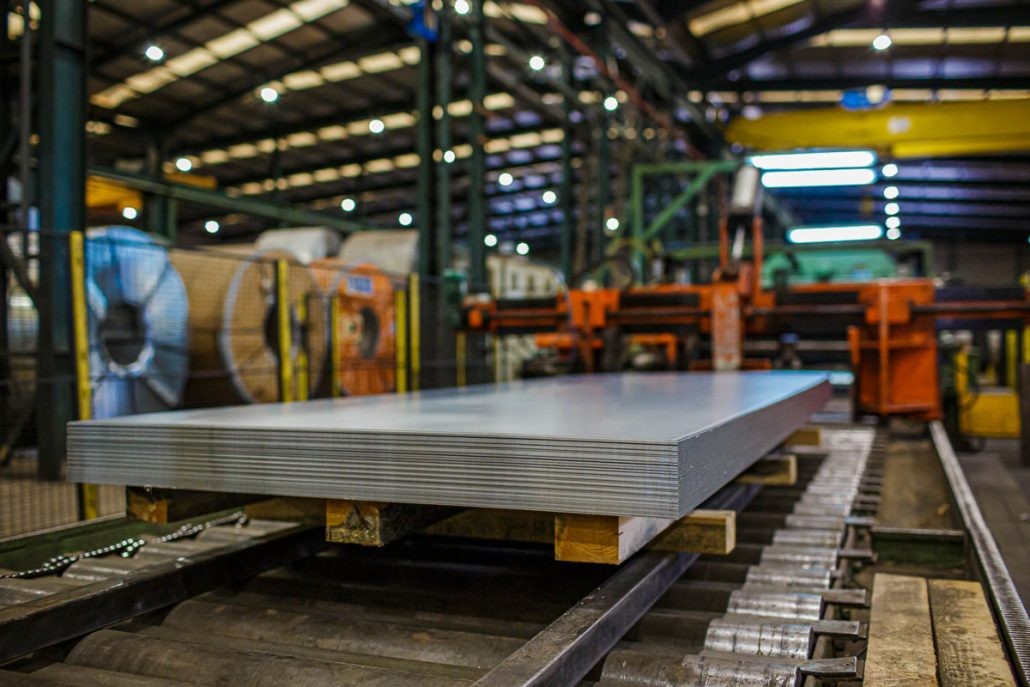

• Product conveyor sends finished sheets onto the pneumatic packing platform.
• We adopt high quality parts supplied by famous brands, e.g. Yuken/Fuxin hydraulic parts, HRB/ZWZ/SKF bearings, etc. which can ensure good performance of the coil CTL line.

Technical Parameters

coil slitting line cut to length 1.0-10mm

cut to length machine sheet metal 1.0-10mm

cut to length metal machine

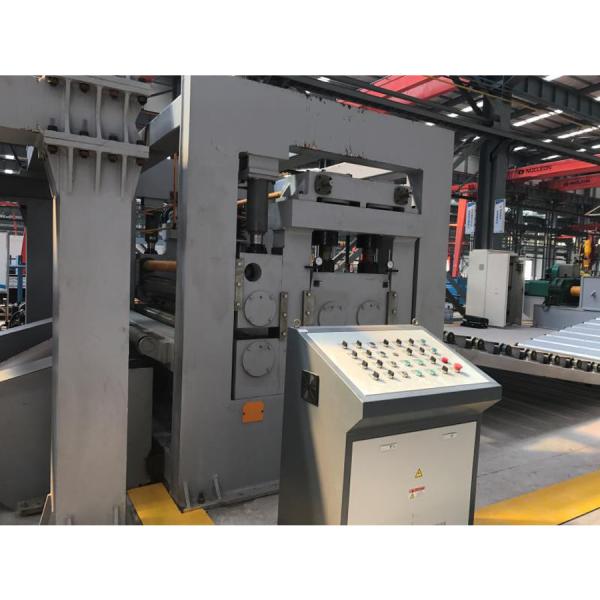

Heavy Duty CTL Cut To Length Line Cut To Length Machine Sheet Metal 1.0-16mm Images
